SW300 Heavy Duty Automatic Swing Door Opener Max Door Weight 300kg
SW300 Heavy Duty Automatic Swing Door Opener Max Door Weight 300kg
One Complete set comes with 2 pcs arms,2 pcs remote controls,2pcs wired push buttons1 pcs operator,1 pcs hand programmer
Product Features
- Imported motor,durable and high quality;
- Quiet operation with Low noise;
- Heavy duty loading motor which can hold max door weight 300kg per leaf for door width 900mm;
- Well-made arm joint and hardware
Olide Handicap Door Operators With Remote Technical Specifications
| Power: | AC110V/220V +/- 10%,50-60Hz | Power Consumption: | 100W(Max) |
| Max Door Weight: | 300kg for door width 90cm | Drive Unit: | 24V DC Motor |
| Auti-squeeze Device: | Standard | Opening Time(speed): | 3-7seconds adjustable |
| Closing Time(speed): | 3-7 seconds adjustable | Open Hold Time: | 0.5-30 seconds adjustable |
| Drive Arm: | Pull arm, Push arm | Opening Angle: | 80°-100° |
| Ambient Temp: | -20°-45°C | Relative Humidity: | <=85% |

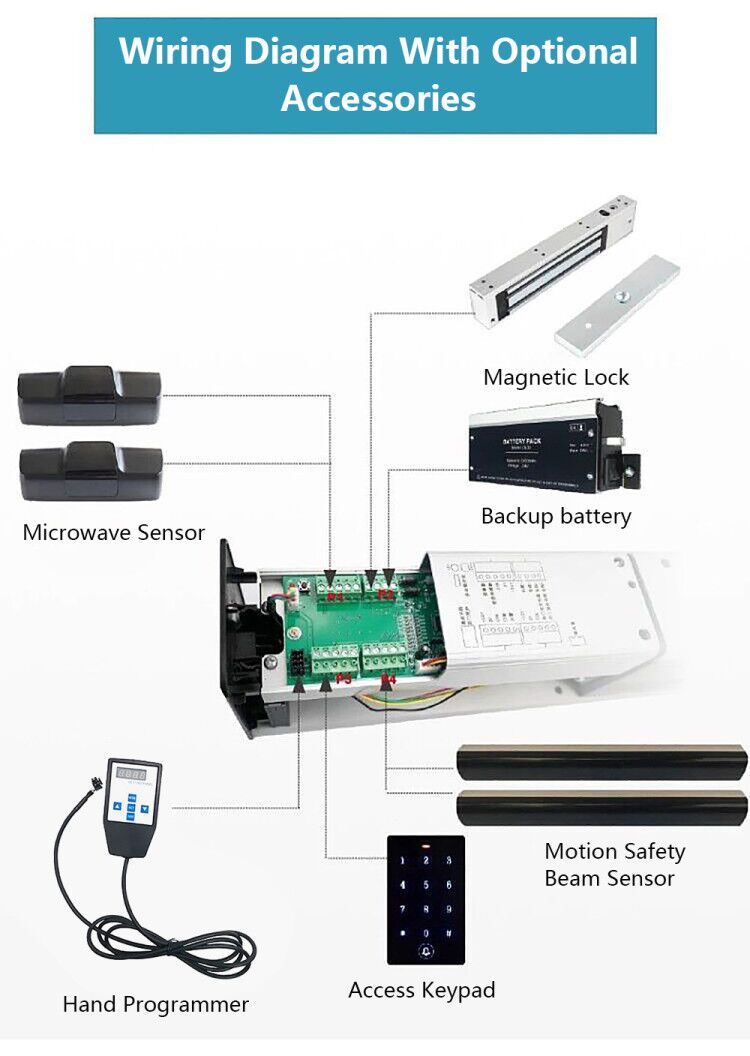

Wiring Diagram
Published in
Automatic swing doors
Tuesday, 21 May 2019 02:45
Olide Automatic Double Swing Door Closer, Dual Swing Door Openers
Olide Dual Automatic Swing Door Closer
Notes:
Please choose your door opening type (push opening or pull opening) so that we can send you right arms.
Complete set included:Opener, 2 arms(push arms or pull arms), 2 remotes, 2 push buttons,1 hand programmer.
Automatic Double Swing Door Closer working video
Automatic Swing Door Closer with Push Buttons Advantages
1.The motor adopts DC24V turboworm motor with one grade variable speed and long service life. The controller can be directly connected with the access control, electric lock, etc., without additional 12V power supply.
2.The automatic sswing door opener model SW200 can hold up to 200kgs of weight, making it more powerful to run. If it is a frameless glass door, which can be equipped with a frameless glass clip,and door can run smoothly.
3. Reinforced high strength aluminum alloy and imported original parts used. -- Whole machine adopts the imported original parts, with reinforced high strength aluminum alloy shell design, anti-pressure and anti-wear, firm and durable.
4. Imported motor from Germany -- The motor are imported from Germany with fast speed and service life of more than 1 million times. The motor adopts optimized design, which has higher efficiency and can produce considerable energy saving effect.
5. Microcomputer controller, more intelligent -- several sets of transistors are added inside the controller, and a set of protection switches can stabilize the voltage. You don't need extra hand programmer to adjust the parameters, you can adjust the parameters directly on machine.
6. Universal voltage can widely used -- The motor design takes into account the variation of voltage in different regions, makes the motor adapt to the use of voltage in multiple regions, and guarantees the user performance.(It have made the transformer function directly in the controller, so you can connect AC110V/ AC220V directly to machine.)
7. Multi-function interface- It can be connected with the electronic lock, the access control system and etc., and can be connected directly with sensor.
8. The Remote control distance can be more than 10 meters, and flexible adjustment of automatic door (automatic, normally open, normally closed, semi-open).
Double Automatic Swing Door Opener Detail
Dual Automatic Swing Door Opener Installation
Installation Examples
Olide Factory Display
