SW200 Heavy Duty Automatic Swing Door Opener

Automatic Swing Door Closer With Remote Control,Heavy Duty For Max Door Weight 200kg

package included

sw200 heavy duty automatic swing door



Automatic Swing Door Opener Heavy Duty For Max Door Weight 200kg  Features

1. The motor adopts DC24V turboworm motor with one grade variable speed and long service life. The controller can be directly connected with the access control, electric lock, etc., without additional 12V power supply.

2. The automatic sswing door opener model SW200 can hold up to 200kgs of weight, making it more powerful to run. If it is a frameless glass door, which can be equipped with a frameless glass clip,and door can run smoothly.

3. Reinforced high strength aluminum alloy and imported original parts used. --  Whole machine adopts the imported original parts, with reinforced high strength aluminum alloy shell design, anti-pressure and anti-wear, firm and durable.

4. Imported motor from Germany -- The motor are imported from Germany with fast speed and service life of more than 1 million times. The motor adopts optimized design, which has higher efficiency and can produce considerable energy saving effect.

5. Microcomputer controller, more intelligent -- several sets of transistors are added inside the controller, and a set of protection switches can stabilize the voltage. You don't need extra hand programmer to adjust the parameters, you can adjust the parameters directly on machine.

6. Universal voltage can widely used -- The motor design takes into account the variation of voltage in different regions, makes the motor adapt to the use of voltage in multiple regions, and guarantees the user performance.(It have made the transformer function directly in the controller, so you can connect AC110V/ AC220V directly to machine.)

7. Multi-function interface- It can be connected with the electronic lock, the access control system and etc., and can be connected directly with sensor.

8. The Remote control distance can be more than 10 meters, and flexible adjustment of automatic door (automatic, normally open, normally closed, semi-open).

sw200 swing door opener advantages

Product Advantages

SW200 details 03



More Details

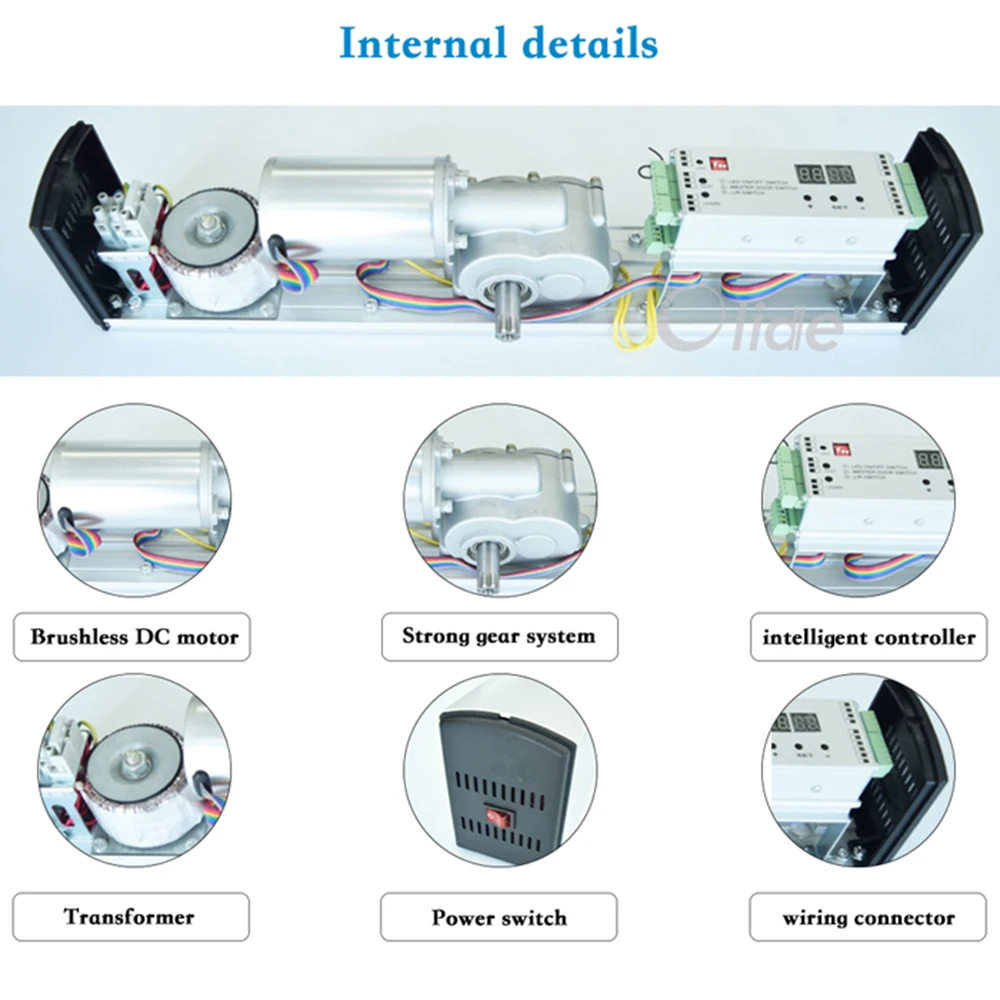

SW200 swing  door  opener  details

heavy-duty-swing-door-opener-5

installation details

sw200 swing door opener pull arm installation sw200 swing door opener push arm installation
Pull Arm Installation Push Arm Installation

Technical Specification

Operation Voltage: AC220V - 250V
Power Supply External Consumer:             24V DC (+-10%), 3A
Door Opening Angle: Max 120°
Opening Speed:  45°/s
Closing Speed:  45°/s
Hold-open Time: 0-60s
Protection Class: IP42
Ambient Temperature: -20°~+50°C



factory display
